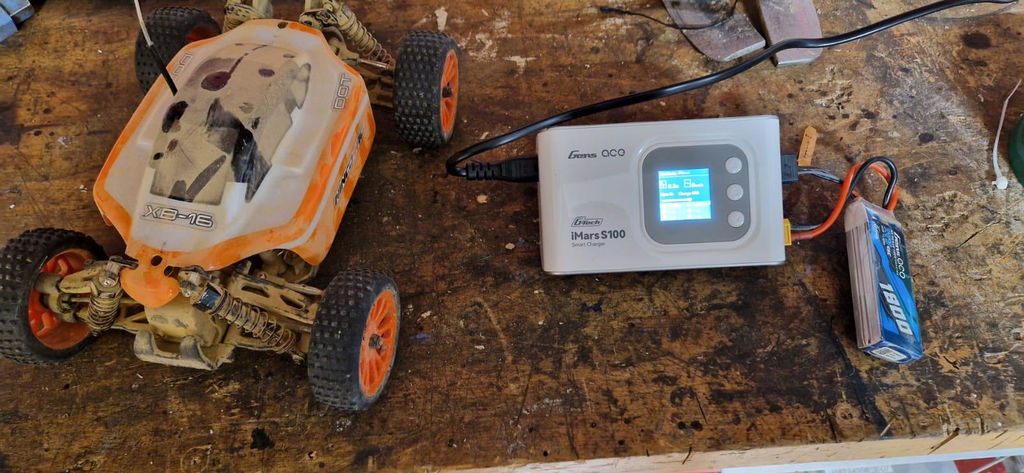

Gens ace iMars S100 G-Tech AC Balance RC Battery Charger-White

Gens Ace iMars S100 G-Tech AC Balance Charger; capable of 10 amp charge rates; worldwide 100V-240V voltage versatility; with 100 Watts of power. It is great to charge your FPV & Car Batteries.

The iMars S100 G-Tech Charger become upgraded from iMars Pro III. As a new member of G-Tech Eco; iMars S100 is designed specifically for the G-Tech smart battery; but is also compatible with non-smart batteries.

Two main improvements are below;

1.Mechanical Keys: replace the touchpad with mechanical keys; akin to the acclaimed functionality of our Dual 300W charger. Additionally; we have integrated G-Tech compatibility into the port; seamlessly connecting the iMars S100 with the G-Tech family of products.

2.Unified UI Language: Drawing inspiration from the intuitive interface of our Dual 300W charger; the iMars S100 adopts a consistent UI language. This uniformity ensures ease of navigation and will remain consistent across future charger releases.

These enhancements promise a more ergonomic and user-friendly charging experience. The versatility of the iMars S100 extends across a wide spectrum of applications; from powering small batteries for 3inch FPV drones and Airsoft electronic pistols; to supporting larger batteries for car models; 1:10/1:8 racing competitions; or 700-series helicopters.

Specifications:

•  Input Voltage: AC 100-240V
•  output Voltage: 27V(max)
•  Max. Input Current: 50~60Hz~1.5A
•  Discharging Power: 5W(Max.)
•  Charging Power: 100W(Max.)
•  Charge Current: 10A(max)
•  Discharge Current: 0.4A(max)
•  Cell Balancing: 2S-6S(Lipo/Li-ion/LiHV/LiFe); 4S-18S(NIMH)
•  Function: Charger/Discharge/Storage/Balance; etc
•  Channel: Single
•  Input connector: AC
•  Output connector: XT60
•  Dimensions: 139.8x83x40 mm
•  Product Net Weight: Approx. 310g
•  Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter / USB cable

 Product introduction video

Our services

1. Your orders will be dispatched via UPS from Germany directly.
2. Fast shipping and excellent local after-sale service guaranteed in Europe.
3. Service-priority in the online shop; like the long warranty period and the lower price. We provide 1 year warranty; there would be a special discount provided for orders over 1 year.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/heli/fpv type. Very High according to capacity/weight. In fact; we are specialists in High Power Lipo Batteries. It is our unique technology; the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its' partners fulfill the ISO9001; ISO14001 standards.
